Presentation switchers / scalers
PS-4IN-UHD

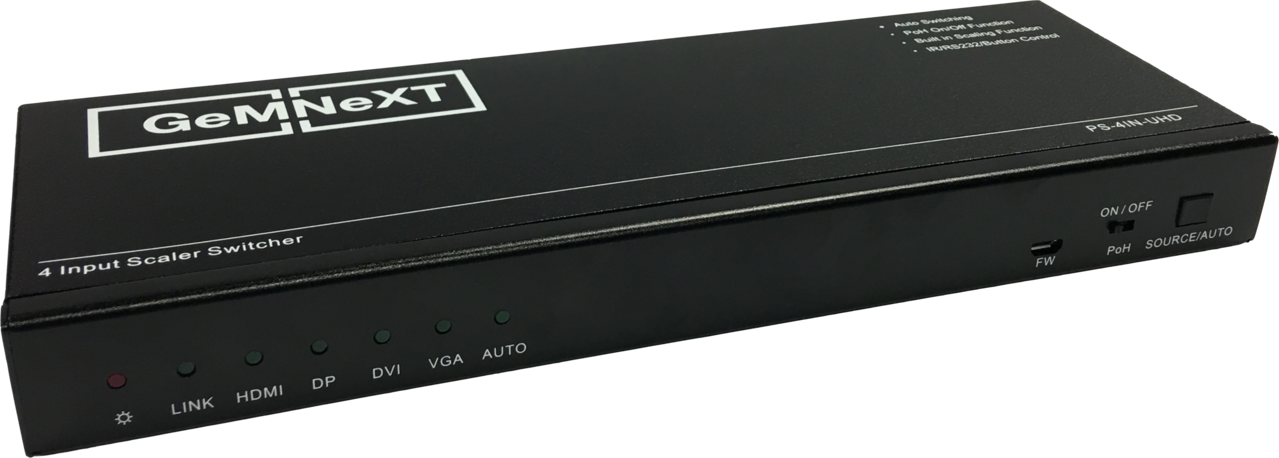

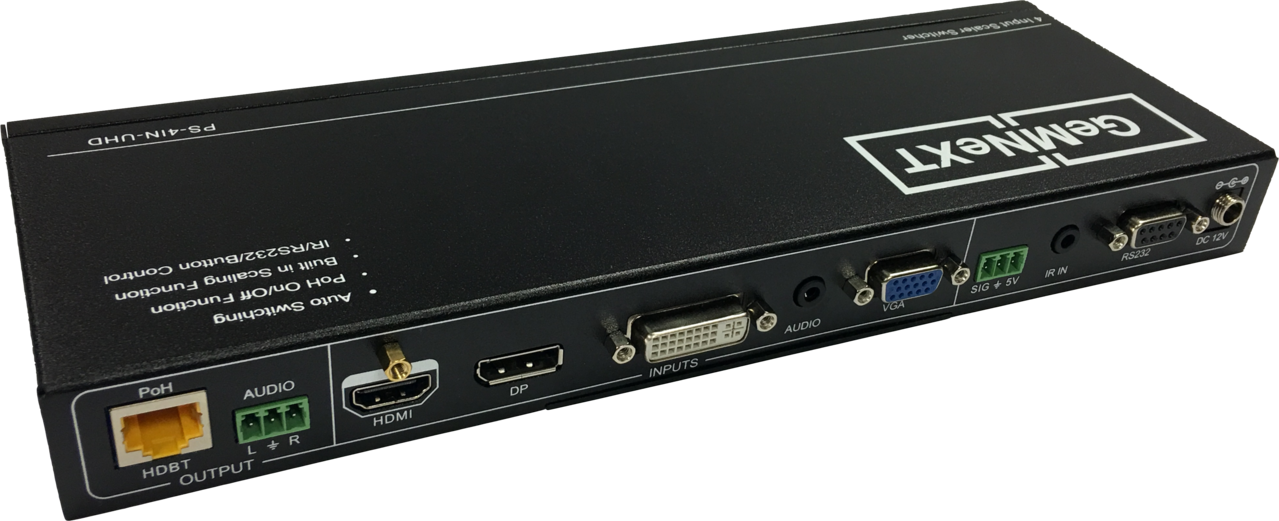

The PS-4IN-UHD is a compact mini scaler switcher with 4 video inputs (1 HDMI, 1 DP, 1 DVI, and 1 VGA). As the VGA input supports VGA, YPbPr and C-video, so the scaler switcher works with multiple video signals.
The PS-4IN-UHD scales and switches any video signal to HDBaseT output (supports PoH and connects to a Video Extend-er-HDBaseT Receiver, up to a maximum transmission distance of 100 meters 4K ultra HD. With (1) IR IN and (1) RS232, the IR and RS232 signals can be transmitted between the PS-4IN-UD and HDBaseT Receiver.
FEATURES:
Compact multi-format switcher with 4 video inputs
Compliant with HDCP2.2
Support HDBT2.0
Transmit 4Kx2K signal - 100 m
Control via Front-panel button
IR and RS-232
Datasheet PS-4IN-UHD
Manual PS-4IN-UHD
PS-4IN-UHD
PS-5IN-SCALER

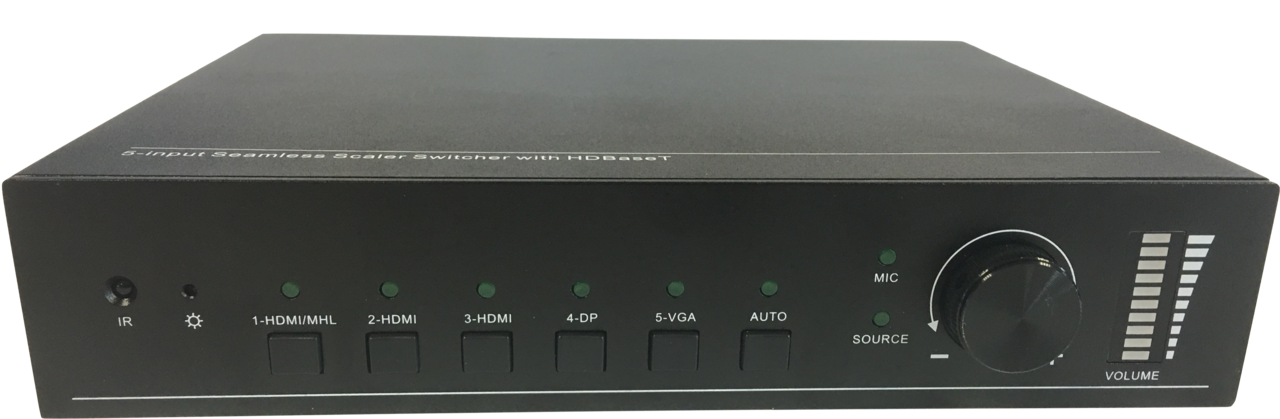

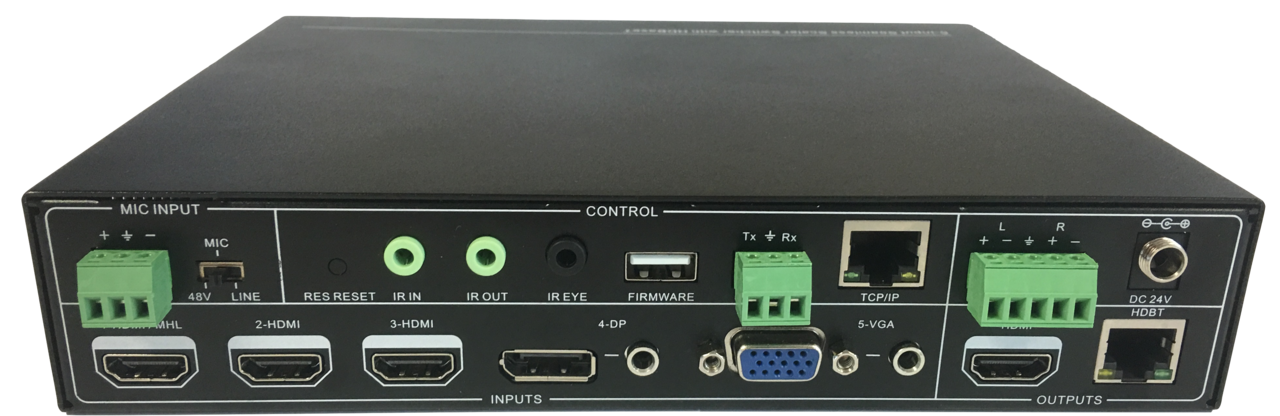

The PS-5IN-SCALER is a compact mini scaler switcher with 5 video inputs (3 HDMI, 1 DP and 1 VGA) and 3 audio inputs. As the VGA input supports VGA, YPbPr and C-video, so the scaler switcher works with multiple video signals. The PS-5IN-SCALER scales and switches any video signal to HDMI and HDBaseT output (supports PoH and connects to a Video Ex-tender-HDBaseT Receiver, up to a maximum transmission dis-tance of 70 meter Full HD) With (1) IR IN and (1) RS232, the IR and RS232 signals can be transmitted between the PS-5IN-SCALER and HDBaseT Receiver.
FEATURES:
Multi-format Scaler Switcher with 5 video inputs
Compliant with HDCP2.2 & full Audio support
Support HDBT2.0, transmit over HDBaseT - 100 m
Control via Front-panel button, IR and RS-232
Datasheet PS-5IN-SCALER
Manual PS-5IN-SCALER
PS-5IN-SCALER
PS-4IN-H2

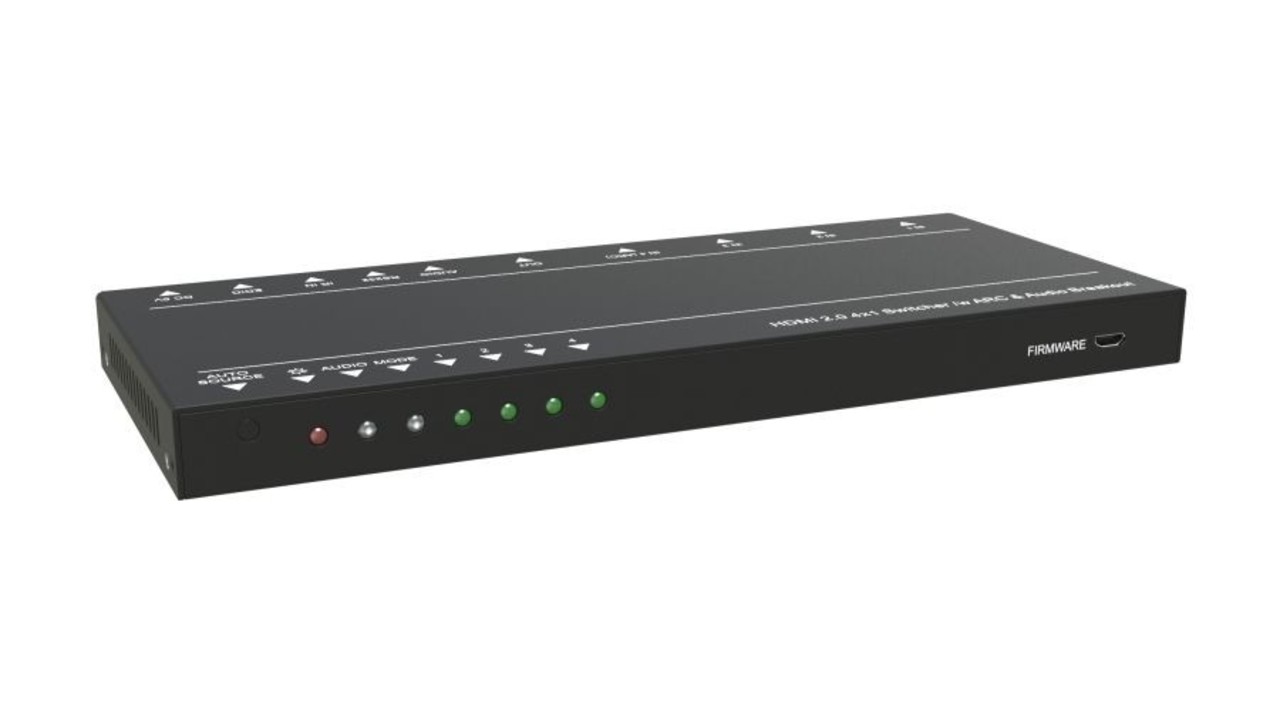

The PS-4IN-H2 is an ultrathin HDMI 2.0 4x1 HDMI switcher with 4 HDMI inputs and 1 HDMI output. This switch supports 4K @ 60Hz resolution with 4:4:4 & HDR. It provides EDID information to pass from the display as well as multiple built-in EDID settings. The switch will de-embed digital stereo audio to provide an analog audio source for an existing or separate audio system. The switch also support audio return channel (ARC) for trans-mitting audio back to HDMI input port from the display. RS232 and IR are provided for controlling the switch.
FEATURES:
- Supports HDMI 2.0, 18G, 4K@60Hz 4:4:4 HDR
- HDCP 2.2 compliant.
- Smart EDID management, RS232 & IR control
- de-embedded Audio support
- Auto-switch
- Ultra-slim design
Datasheet PS-4IN-H2
Manual PS-4IN-H2
PS-4IN-H2
