HDMI Matrix Switches
Our matrix switches are high quality with attractive pricing. Please find the different HDMI matrix switches below and find your perfect solution. Besides the HDMI matrix switches we have several other types of matrix switches. Please check them out here

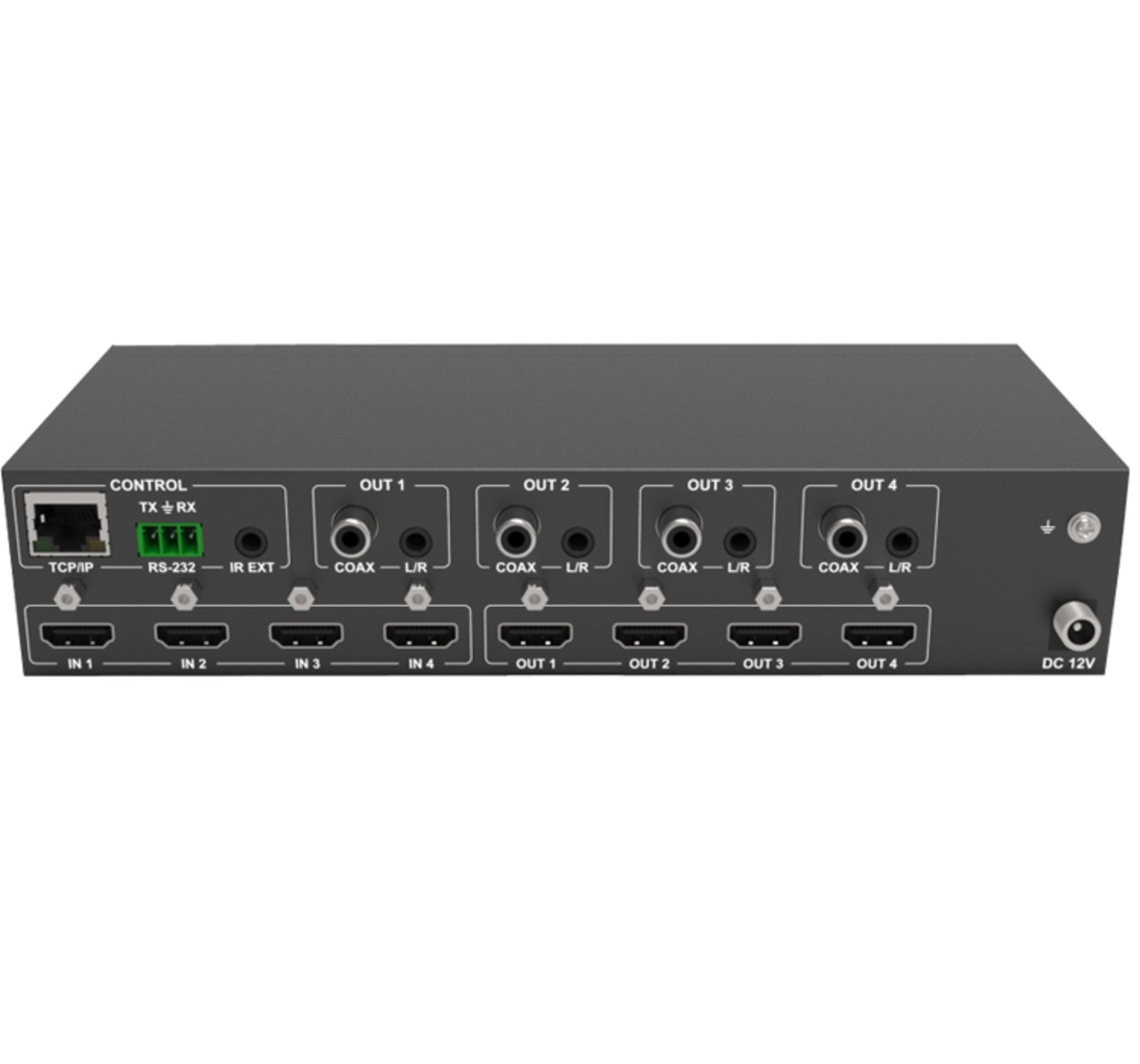

Matrix-4X4-H2
4X4 HDMI2.0b Matrix, Audio Extract / 4K -> 1080P Downscaler/CEC/ARC/ IR/RS232/Web GUI TCP IP 4K@60Hz 4:4:4 HDCP2.2.
This high performance HDMI Matrix Switcher can switch any of these four HDMI 2.0 sources to four HDMI 2.0 displays. Each input and output sup-ports up to 4K60 4:4:4 resolution and HDCP 2.2. The outputs can be indi-vidually scaled for 1080p. De-embedded audio as analog L/R and coaxial is available for both outputs.
The ARC function can return display device audio to coaxial port output only. Advanced EDID management is supported. With its 18Gbps bandwidth and the additional features with latest HDMI standards. This switcher can be controlled from the front panel, RS-232, IR remote, or TCP/IP.

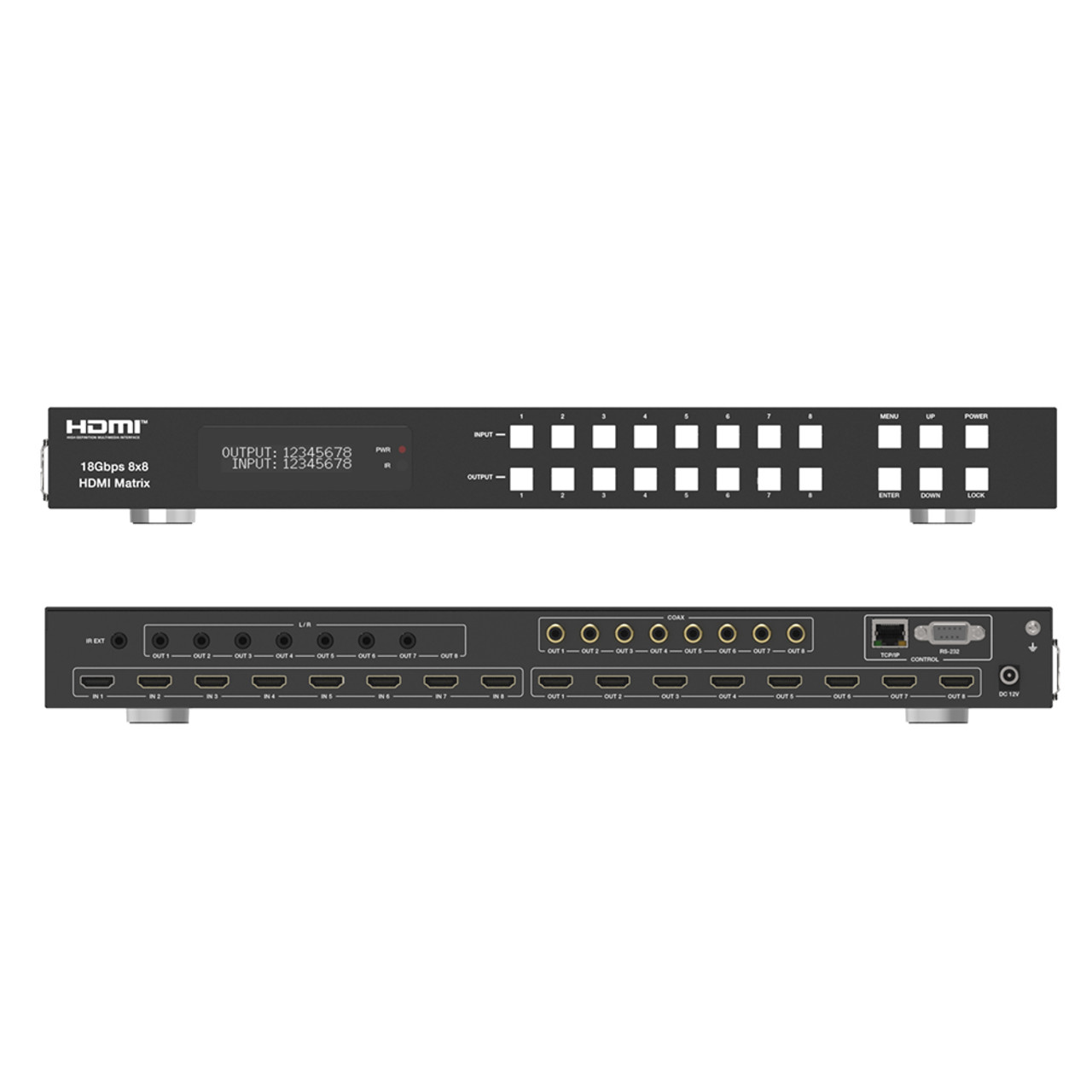

Matrix-8X8-H2
8x8 HDMI 2.0b Matrix with Audio Extract/ 4K -> 1080P Downscaler/CEC/ARC/RS-232/LAN/Web GUI
The Matrix-8X8-H2 18Gbps 8x8 HDMI Matrix supports the transmission of video (up to 4K2K@60Hz YUV 4:4:4) and multi-channel high resolution digital audio from 8 HDMI sources to 8 HDMI displays.
Audio de-embedded to analog and coaxial audio is supported from 8 HDMI output ports. While HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output. Each HDMI output of this 8x8 HDMI Matrix supports 4K2K to 1080P downscaler independently. Control is via front panel buttons, IR remote, RS-232, LAN and Web GUI.

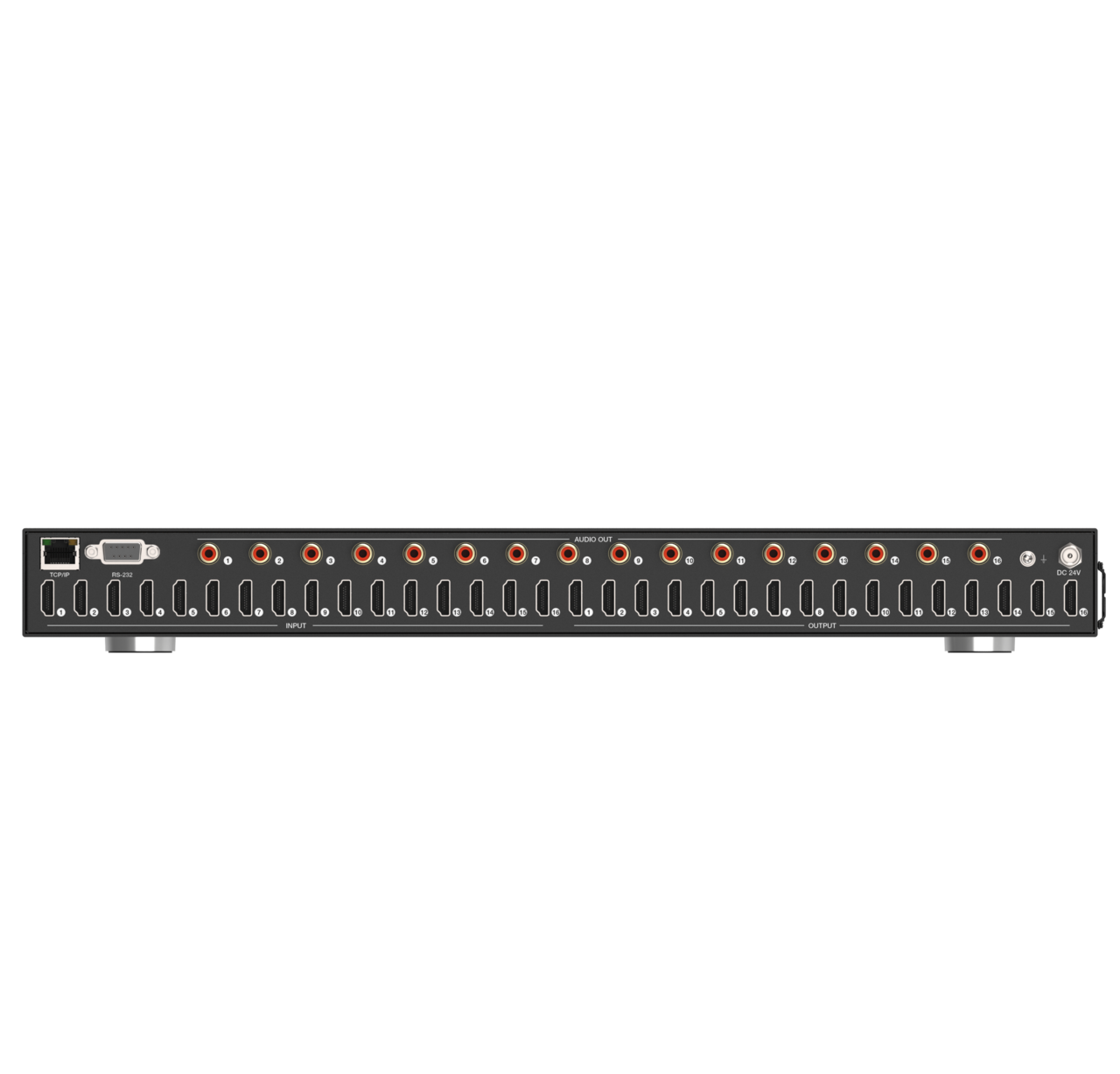

Matrix-16X16-H2
16X16 HDMI2.0b Matrix with Audio Extract/4K -> 1080P Downscaler/CEC/ARC/IR/RS-232/Web GUI/LAN 4K@60Hz 4:4:4, HDCP2.2
The 18Gbps 16x16 HDMI Matrix supports the transmission of video (resolution up to 4K2K@ 60Hz YUV 4:4:4) and multi-channel high resolu-tion digital audio from 16 HDMI sources to 16 HDMI displays.
Audio de-embedded to coaxial audio is supported from 16 HDMI output ports. While HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output. Each HDMI output of this 16x16 HDMI Matrix supports 4K2K to 1080P downscaler independently. Control via front panel buttons, IR remote, RS-232, LAN and Web GUI.
