4K HDMI - HDBaseT Matrix Switchers

4x4 and 8X8 HDMI to HDBaseT matrix with HDMI 2.0 and HDCP 2.2 support, HDBaseT and HDMI outputs. It can transmit4K@60Hz 4:4:4 HDR video up to 131ft/40m and 1080P up to 230ft/70m over a single CAT5e/6 cable, it support audio de-embedded form input and output side, and bi-directional IR, RS232 extension. Multiple control by buttons, IR, RS232 and GUI.

        ● Supports 18Gbps bandwidth.
        ● Supports HDMI 2.0, HDCP 2.2, CEC.
        ● Supports 4K@60Hz 4:4:4 HDR video up to 131ft/40m and 1080P up to 230ft/70m.

        ● 2-way IR and RS232, PoC for the receivers.
        ● Stereo audio de-embedded from inputs, digital audio de-embedded from outputs.
        ● Smart EDID management.
        ● mirrored HDMI outputs.
        ● Smart EDID management.
        ● Controllable via front panel buttons, IR, RS232 and TCP/IP (GUI).

Receivers are included with the Matrix switchers.


Datasheet Matrix-4X4-HBT-H2-KIT

Datasheet Matrix-8X8-HBT-H2-KIT

Matrix-4X4-HBT-H2-KIT

HDMI and HDBaseT Out

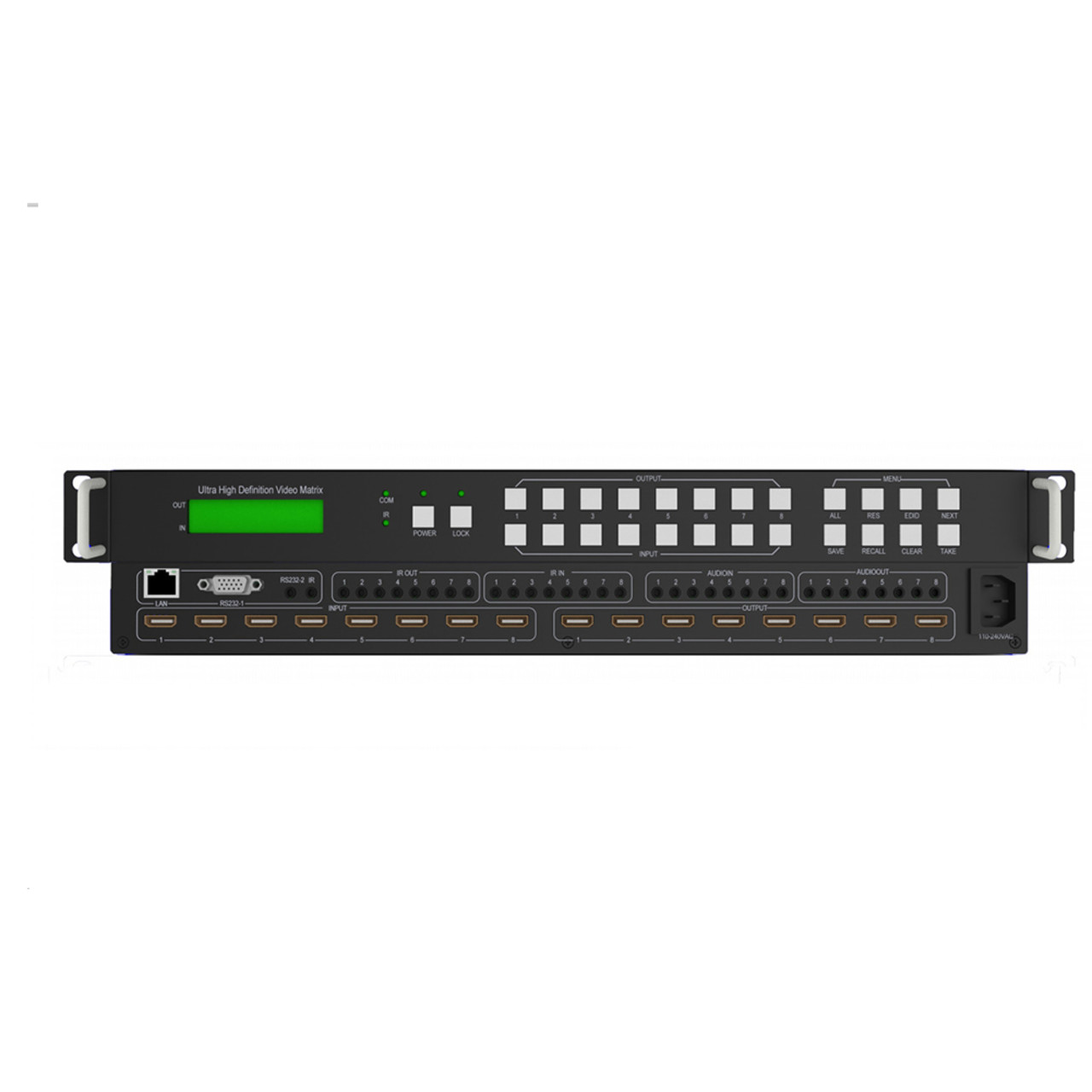

Matrix-8X8-HBT-H2-KIT

HDMI and HDBaseT Out
